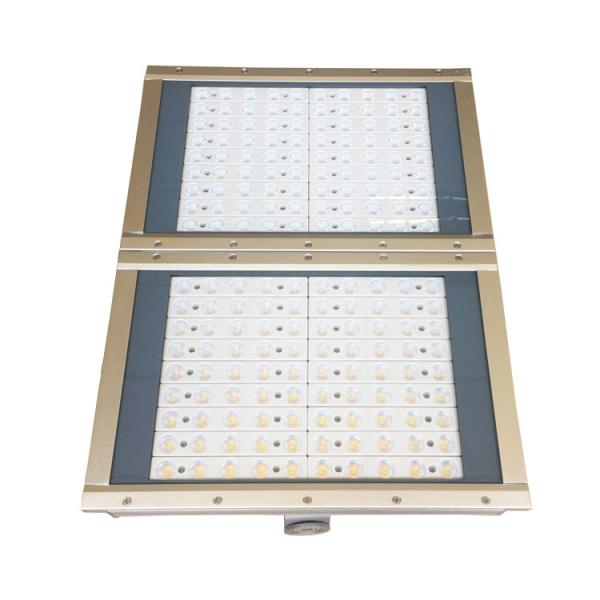

400W WaterProof LED Flood Lights
Symmetrical Wide Flood Marine LED Flood Lights LED 400W For Dock Area
Common Applications:
- Container loading areas and general shipping yards and marine searching lighting and bow lighting.
- Sports and stadium lighting and prison or army security lighting.
- Car park,Shopping centres,Pedestrian crossings,Industrial & logistical.
- General flood and area lighting.
| Rated voltage V | AC220V |
| Operating voltage range V | AC90-295V |
| Power(W) | 400W |
| Rated frequency Hz | 50Hz |
| Light source | LED solid state cold light source |
| Color rendering Ra | greater than 80 |
| Protection grade | IP65 |
| Anti-corrosion grade | WF2 |
| Power factor | >0.95 |
| Start-up time(min) | Instant |
| Restart time(min) | Instant |
| Shell material/thickness(mm) | 3 |
| Lampshade surface treatment | tempered glass |
| Insulation class | I |
| Inlet cable | Φ8-Φ10mm |
| Distance to height ratio | 2 |
| Dimensions | 762×293×115mm |
| Luminous flux (Lm) | 44000 |
| Light efficiency(Lm/W) | 110Lm/W |
| Life(H) | 100000 |
| Color temperature(K) | 3000～6000K |
| Weight(Kg) | 15.6Kg |
| Explosion-proof mark | ExnAnRIICT4 Gc |
| Explosion-proof number | CNEx17.3665 |
Marine LED Flood lights
Our Marine LED Flood lights can replace traditional metal halide and HPS floodlights. We have authoritative certifications, such as
ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 salt spray test. We focus on the R & D and manufacturing of sports
field LED lighting to support large area lighting. We have achieved good results in various sports lighting. High-performance lighting is the best choice for outdoor sports lighting.
• It is ultra-light yet immensely tough.
• It is 200 times stronger than steel, but it is incredibly flexible.
• It is the thinnest material possible as well as being transparent.
• It is a superb conductor both electrically and thermally and can act as a perfect barrier - not even helium can pass through it.
Features:
Adopt LED solid-state cold light source imported from Germany Osram, with high luminous efficiency, long life and good color rendering.
The power supply is Taiwan MEAN WELL power supply recognized by international lighting experts with the best matching performance for LED lamps, no flicker, stable power supply performance, and a wide voltage range of AC85-265V.
The optical grade lens is used to complete the secondary light distribution, and the light transmittance is high. Compared with the ordinary lens, the light effect is increased by 10% to 20%. The light distribution is uniform, making the light softer and effectively improving the visual visibility.
The shell (radiator) is stretched and formed with aviation lightweight aluminum alloy profiles. The large heat sink design ensures sufficient heat dissipation surface area. At the same time, each heat sink conforms to the thermal flow dynamics design to meet the heat dissipation area while ensuring the heat conduction cross section, making the LED The heat generated can be timely and effectively exported to the surface of the housing (heat sink) to ensure the heat dissipation performance of the LED and the service life of the LED. At the same time, a heat conduction channel is designed for each LED.
End covers at both ends of the shell are designed for outdoor dusty and rainy environments. The shell is designed with automatic diversion and dust removal holes to ensure that dust cannot accumulate for a long time, which affects the heat dissipation performance.
The transparent parts use high borosilicate tempered glass, which is safe, strong in impact resistance, and good in light permeability.
The two ends of the shell are designed with dual respirators, which can balance the internal and external pressure of the lamp during the temperature change of the lamp to ensure the waterproof and moisture-proof performance of the lamp, and it has the function of heat to make the hot air flow and dissipate heat.
The seal is made of high and low temperature resistant silicon rubber material, and the outer shell protection grade is IP65, which is waterproof, dustproof and moisture-proof.
The mounting bracket is fixed by a double fixing method of fastening bolts and adjusting bolts, which can adjust the angle flexibly and double guarantee the installation tightness of the lamp.
